• DC servo direct-drive motor
• Plays 33-1/3, 45, and 78 RPM records and outputs the high-fidelity audio to the device of your choice
• Built-in selectable phono preamp
• USB cable to connect to your computer
• Bluetooth wireless technology to pair the turntable with wireless speakers, headphones or other devices

Overview

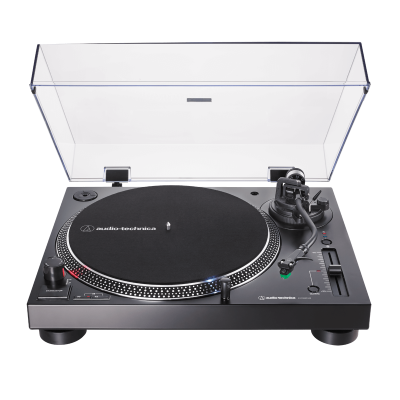

This fully manual turntable is modeled after the AT-LP120XUSB, but adds the convenience of Bluetooth® wireless connectivity to the existing analog and USB outputs.

Featuring a specially designed DC servo direct-drive motor and adjustable dynamic anti-skate control, the AT-LP120XBT-USB plays 33-1/3, 45, and 78 RPM records and outputs the high-fidelity audio to the device of your choice. Use the included RCA output cable along with the built-in selectable phono preamp to connect to your home stereo or powered speakers. Use the USB cable to connect to your computer and then download the free Mac- and PC-compatible Audacity recording software, or software of your choice, to start converting your records to digital audio files. Or use the Bluetooth wireless technology to pair the turntable with wireless speakers, headphones or other devices, including those that support the high-quality Qualcomm® aptX™ audio codec.

The turntable also features an S-shaped tonearm with adjustable tracking force and an AT-HS6 universal ½"- mount headshell with an AT-VM95E Dual Moving Magnet™ phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E. The cartridge comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

Additional professional features include a die-cast aluminum platter with felt mat; a start/stop button; selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with +/-10% adjustment range; a stroboscopic platter with speed indicator; a removable plug-type stylus target light; external power supply; and a removable hinged dust cover.

Tech Spec

Type
3-speed, fully manual operation

Motor
DC servo motor

Drive Method
Direct drive

Speeds
33-1/3 RPM, 45 RPM, 78 RPM

Turntable Platter
Die-cast aluminum

Starting Torque
>1.0 kgf.cm

Braking System
Electronic brake

Wow and Flutter
<0.2% (WTD) @ 3 kHz (JIS)

Signal-to-Noise Ratio
>50 dB

Output Level
Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec Pre-amp “LINE”: 240 mV nominal at 1 kHz, 5 cm/sec

Phono Pre-Amp Gain
36 dB nominal, RIAA equalized

USB Function
A/D, D/A – 16-bit/44.1 kHz or 48 kHz USB selectable; Computer interface – USB 2.0 Compliant Windows 7 or above, or MAC OS X or above

Power Supply Requirements
100 to 240 V, 50/60 Hz, 1.5A Max

Power Consumption
2.75 W

Dimensions
452.0 mm (17.80") W x 352.0 mm (13.86") D x 141.6 mm (5.57") H

Weight
8 kg (17.6 lbs.), without dust cover

Accessories Included
AT-VM95E phono cartridge; AT-HS6 headshell; 1.9 m (6.2') USB cable; dual RCA (male) to dual RCA (male) cable with ground wire; counterweight; felt mat; dust cover; 45 RPM adapter; plug-type stylus target light

Tonearm Type
Balanced S-shaped tonearm with detachable headshell

Effective Arm Length
230.5 mm

Overhang
16 mm

Tracking Error Angle
Less than 3 degrees

Applicable Cartridge Weight
3.5-8.5 g

Anti-skating Range
0-4 g

Replacement Stylus
AT-VMN95E

Communication System
Bluetooth Version 5.0

Maximum Communication Range
Line of sight - approx. 10 m (33')

Compatible Bluetooth Profile
A2DP

Support Codec
Qualcomm® aptX™ Adaptive audio, Qualcomm® aptX™ audio, SBC

Warranty: 2 Years
